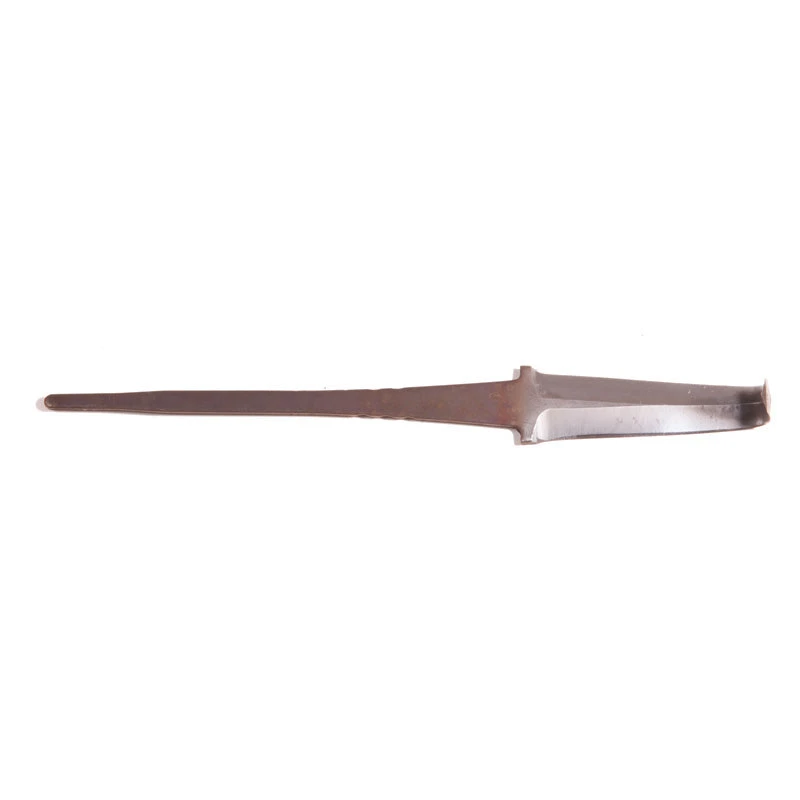

Laurin Farrier Blade

Click here for more details on Laurin blades and fittings!

This a curved blade, similar to those used by farriers.

Below are the detailed measurements of this blade:
  Overall Length: 7.375 inches (18.7 cm)
  Blade Length: 2.5 inches (6.4 cm)
  Blade Width: 0.74 inches (1.9 cm)
  Blade Thickness: 0.08 inches (2 mm)
  Ricasso Width: 0.83 inches (2.1 cm)
  Ricasso Thickness: 0.08 inches (2 mm)
  Blade Weight: 0.9 ounces (26 grams)
  Tang Length: 4.875 inches (12.4 cm)
  Tang Thickness: 0.08 inches (2 mm)
  Tang Width (At Blade): 0.49 inches (1.2 cm)
  Tang Width (At End): 0.14 inches (3.6 mm)
  Blade Material: carbon

Here are the fittings that this blade can be paired with, based on the sizes of the blade, tang, and slot. Any fitting labelled “might be too small/big” will still fit the blade, but might not be a good match depending on the style of knife that you’re making.

  Ferrule 15mm x 23mm Brass Straight: slot is a bit too small, will need to be filed wider/longer
  Ferrule 15mm x 23mm Nickel Straight: slot is a bit too small, will need to be filed wider/longer
  Bolster 15mm x 22mm Brass Straight: **BEST FIT**
  Bolster 15mm x 22mm Nickel Straight: **BEST FIT**
  Bolster 16mm x 24mm Brass Straight: **BEST FIT**
  Bolster 16mm x 24mm Nickel Straight: **BEST FIT**
  Bolster 18mm x 27mm Brass Straight: might be too big
  Bolster 18mm x 27mm Nickel Straight: might be too big
  Bolster 18mm x 35mm Brass Straight: might be too big
  Bolster 18mm x 35mm Nickel Straight: might be too big
  Bolster 19mm x 30mm Brass Straight: might be too big
  Bolster 19mm x 30mm Nickel Straight: might be too big
  Ferrule 18mm x 32mm Brass Straight: might be too big
  Ferrule 18mm x 32mm Nickel Straight: might be too big
  Ferrule 21mm x 39mm Brass Straight: might be too big
  Ferrule 21mm x 39mm Nickel Straight: might be too big
